Two Trees TTC3018S CNC Router Machine
Rs. 13,499

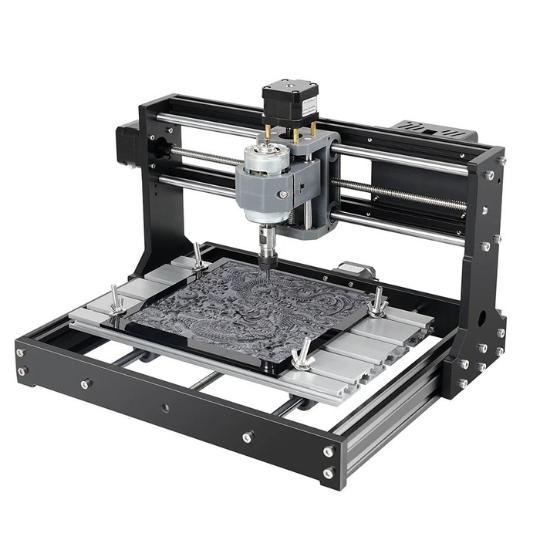

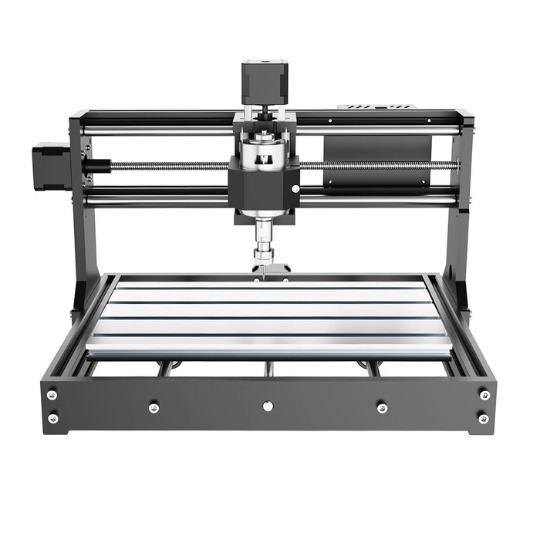

- The Two Trees – TTC 3018S CNC Engraving Machine Kit is a popular and affordable desktop CNC router used for various engraving, carving, and milling tasks. These machines are controlled by computer programs that generate toolpaths, guiding the cutting tool to create precise and intricate designs. CNC engraving machines are commonly used in woodworking, metalworking, and various manufacturing processes.
- Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Casing to extend the life of the control board, Self-contained short circuit protection, Not easy to damage. With an integrated mainboard and custom software, communication between the software and hardware is seamless by design. CNC 3018 s is great for beginners. One main advantage is it can operate without having to connect to a computer. Support Manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle. The Twotrees 3018 s uses Grbl, high performance, open-source software for controlling movement, and runs on Arduino. The Twotrees 3018s can be used on a wide range of projects and materials. Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs.
Detail
Model Series : | TTC Series |
Engraving Size (mm) : | 300 x 180 |
Model No. : | TTC 3018S |
Power Supply Requirements : | 24v (110~240) |
Material : | Bakelite+Profile |
Frame Size (mm) : | 420 x 355 x 280 |
Software Compatibility : | Candle |
OS : | Windows XP / Win 7/Win 8 /Win10/ Linux |
Shipping Weight : | 7.27 kg |
Shipping Dimensions : | 43 × 42 × 16 cm |
- End Mills and Router Bits: Invest in a set of high-quality end mills and router bits designed for CNC machining. The selection of bits depends on the materials you plan to work with and the type of carving or engraving you want to do.
- CNC Software: The TTC 3018S typically uses GRBL-based CNC control software. You may want to explore alternative CNC control software, such as Universal G-Code Sender, CNCjs, or other CAM (Computer-Aided Manufacturing) software for generating toolpaths.
- Dust Collection System: A dust collection system can help keep your workspace clean by capturing dust and debris generated during machining. Ensure that the dust collector you choose is compatible with your CNC machine and effectively removes particles.
- Clamps and Workholding: You’ll need clamps or workholding solutions to secure your workpiece to the CNC bed. T-slot clamps and clamping kits designed for the TTC 3018S can be useful.
- Clamps and Workholding: You’ll need clamps or workholding solutions to secure your workpiece to the CNC bed. T-slot clamps and clamping kits designed for the TTC 3018S can be useful.
- Coolant System: If you’re working with metals or need to keep the spindle cool during long machining sessions, a coolant system can be beneficial.
- Tool Height Setter: A tool height setter helps you accurately set the Z-axis height of your tool, improving precision when changing tools or workpieces.
- Limit Switches: Adding limit switches can provide additional safety by preventing the CNC machine from moving beyond its defined limits. These can be particularly useful if you’re running jobs unattended.
- Touch Probe: A touch probe allows for automatic tool setting and precise zeroing of your workpiece, saving time during setup.
- Controller Upgrades: Some users opt for controller upgrades to add features like a touchscreen interface, wireless control, or improved compatibility with software and accessories.
