Snapmaker : Ray 40W Laser Engraver & Cutter
Rs. 159,999

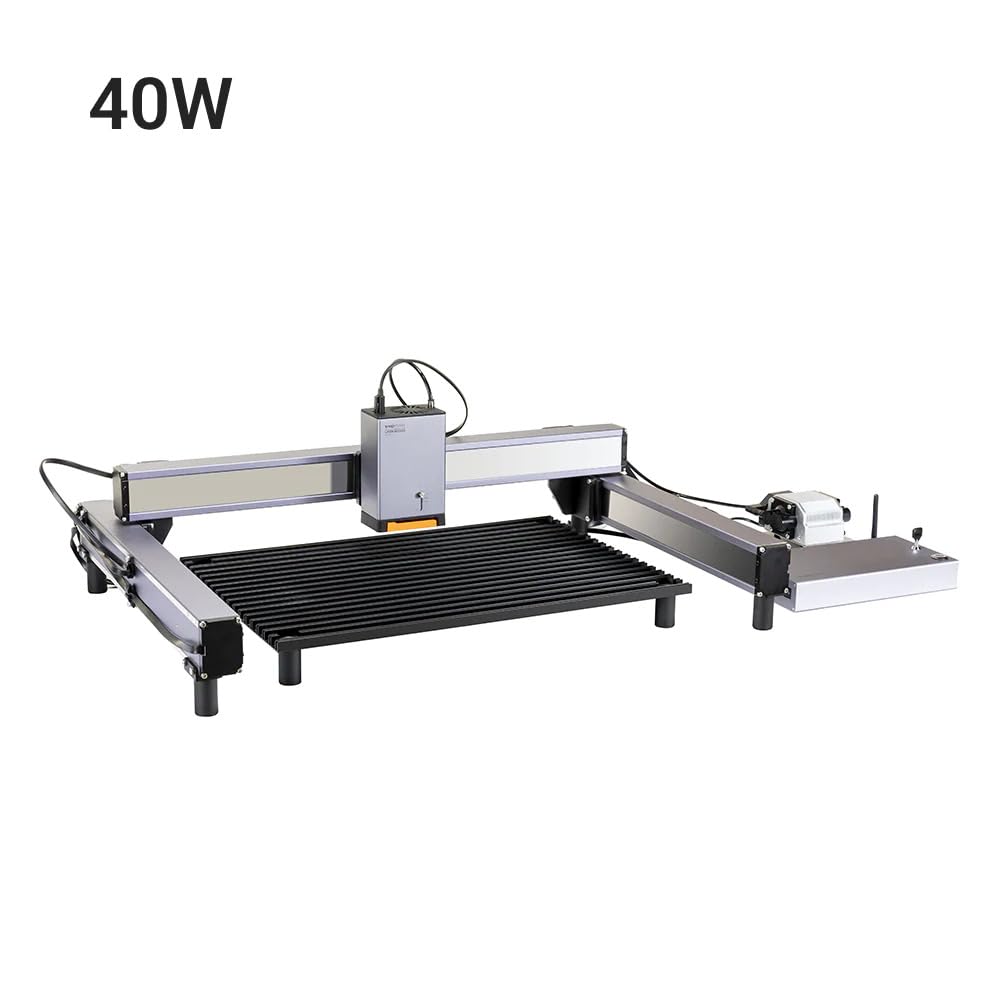

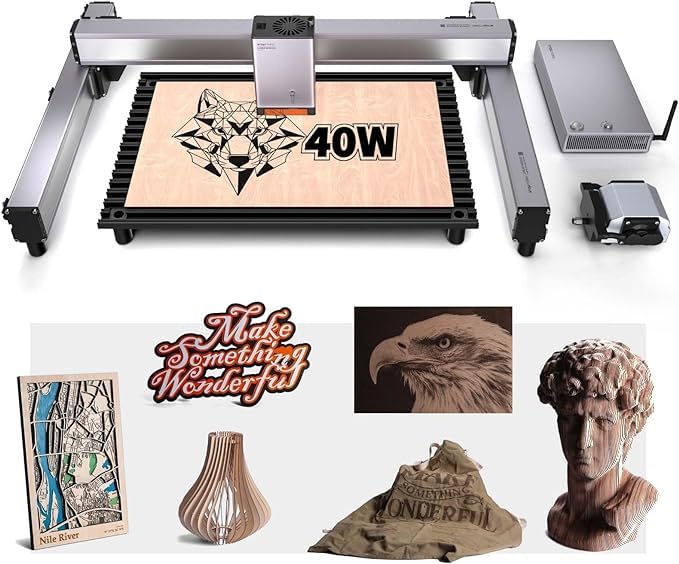

- Ray is Snapmakers first standalone 40W laser engraver and cutter equipped with Air Assist and has a 400mm x 600mm working area. It inherits Snapmaker signature industrial-grade linear rails and continues our long-standing efforts to produce first-class laser products.
Detail
| Laser Module Output Power : | 40W |
| Laser Electric Power : | 140W |
| Machine Power (Enclosure excl.) : | 215W |
| Maximum Thickness of One-pass : | 15mm Basswood Plywood |
| Maximum Work Speed : | 500mm/s |
| Maximum Cutting Speed : | 20mm/s |
| Laser Spot Dimensions : | 0.1mm x 0.15mm |
| Laser Type : | 450 - 460nm Semi-conductor |
| Weight (Enclosure excl.) : | 15.06kg |
| Dimension (Enclosure excl.) : | 849 x 600 x 303 mm |
| Dimension (Enclosure) : | 933 x 665 x 417 mm |
| Maximum Workpiece Height : | 160mm (with two sets of cylindrical feet) |
| Work Area : | 400 x 600 mm |

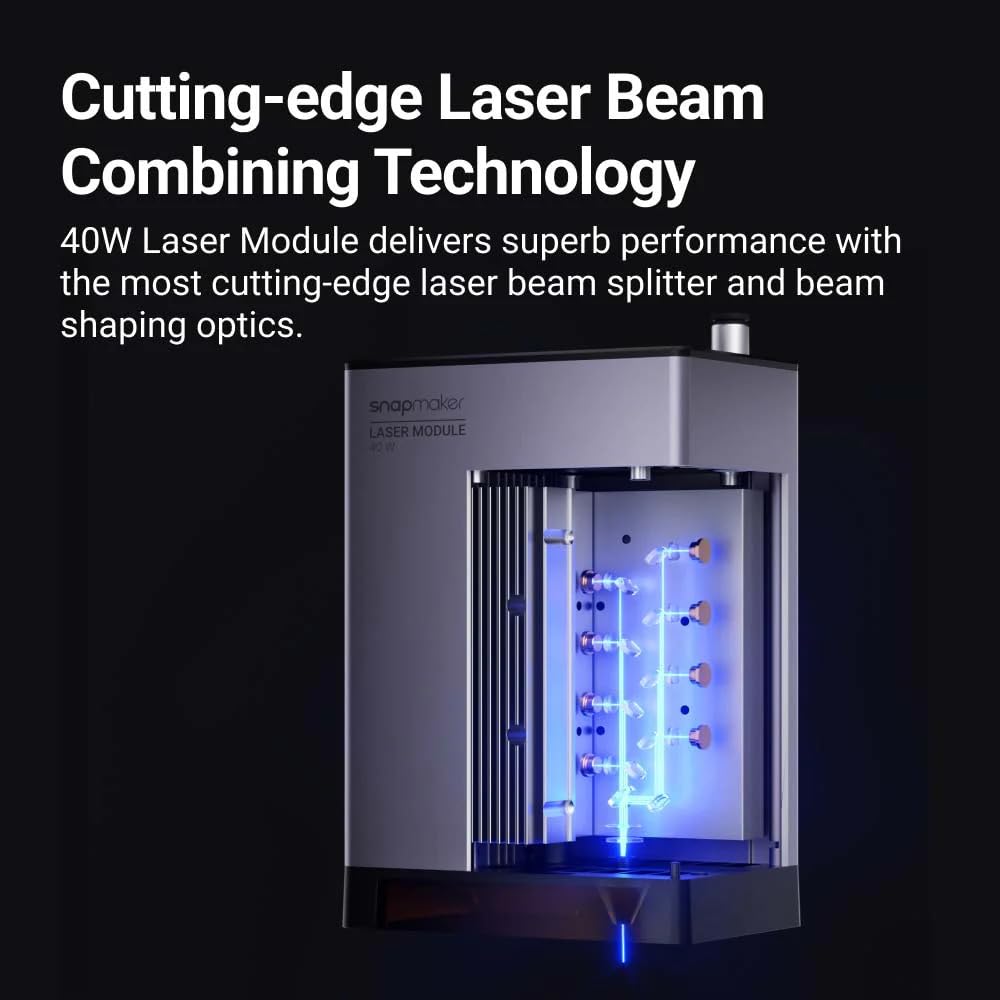

- [Strong cutting capabilities]: For Snapmaker 40W laser engraver,it delivers superb performance with the most cutting-edge laser beam splitter and beam shaping optics. It can cut 20mm Pinewood or 15mm Basswood Plywood in one pass.

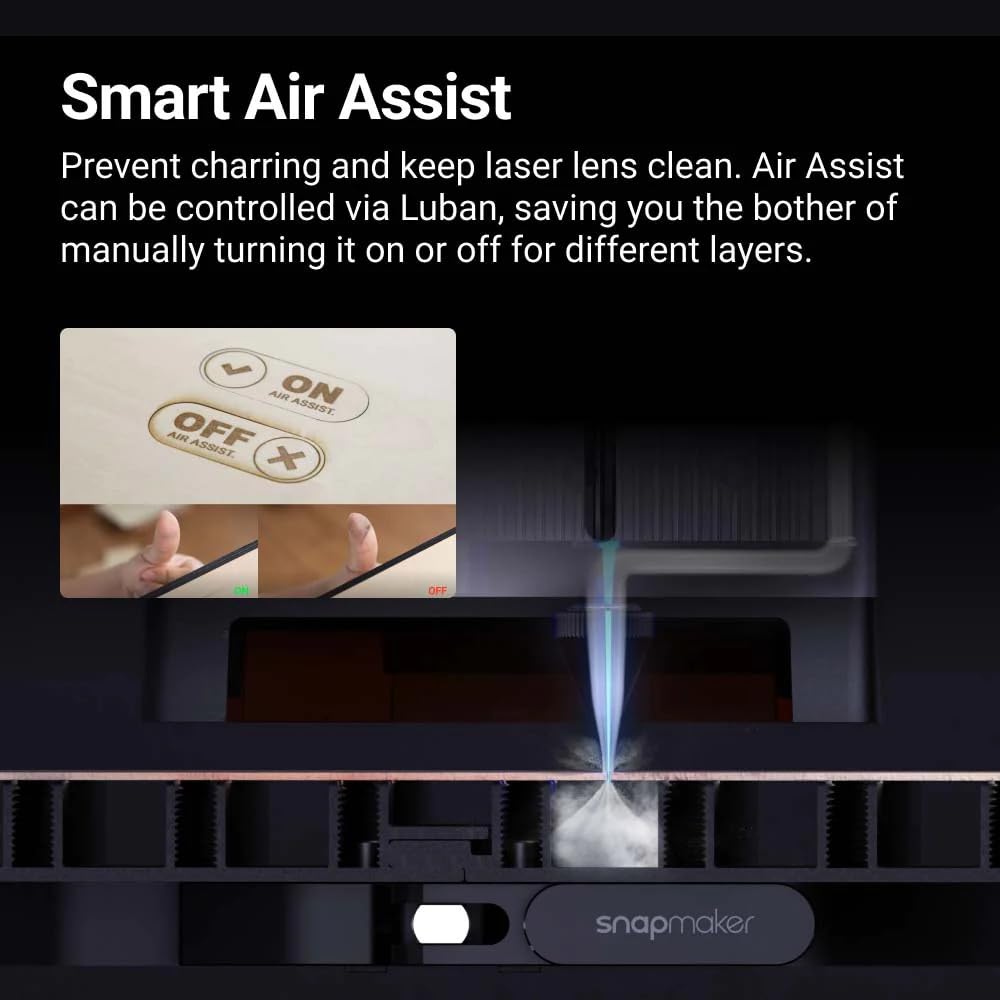

- [Smart Air Assist]: Snapmaker Ray laser engraving machine is equipped with Air Assist Pump. Air Assist can blow the fumes away and prevent charring as well as keep the laser lens clean. Snapmaker software Luban can let you enable Air Assist only on cutting layers, saving you the bother of manually turning it on or off for different layers.

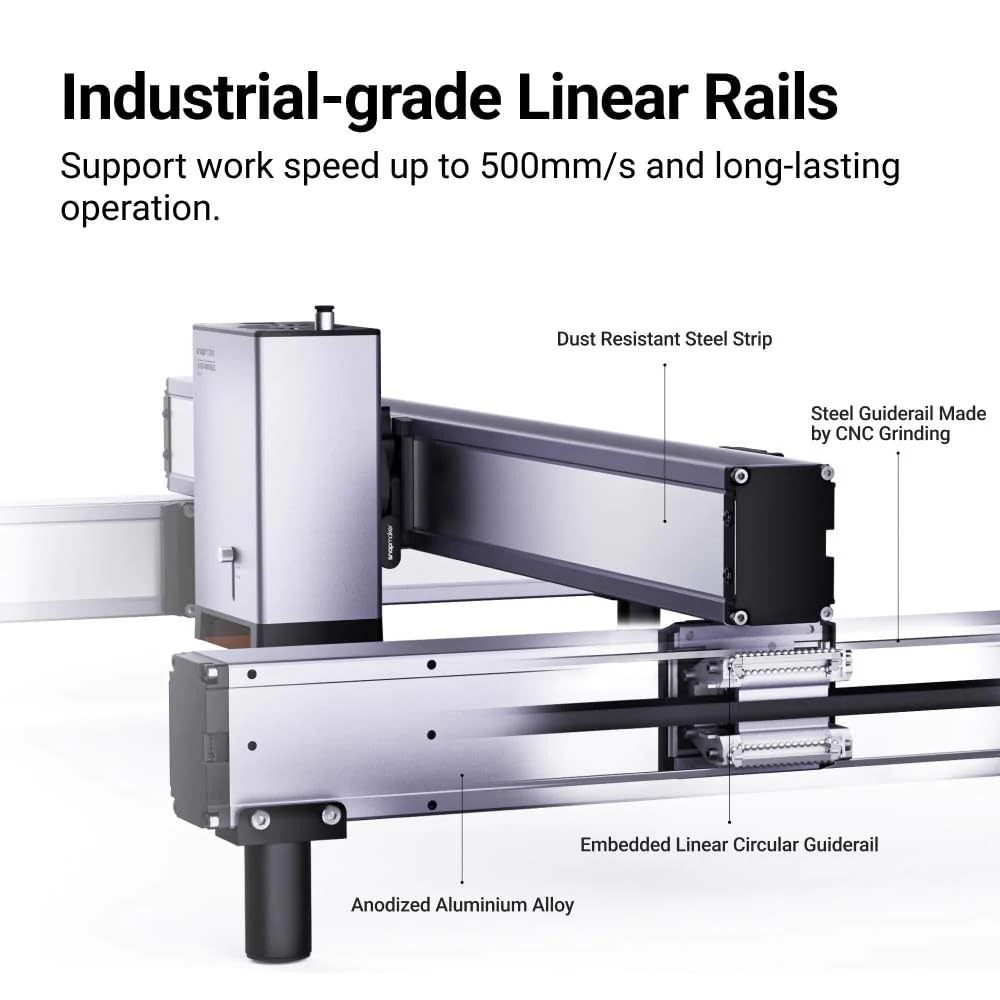

- [Industrial-grade Linear Rails]: Snapmaker adopted industrial-grade linear rails in Artisan 3-in-1 3D Printer to ensure minimal wobble even in fast CNC machining. The very same industrial-grade linear rails are used in XY-axis of Ray laser cutter to support high speed movement up to 500mm/s and long-lasting operation.
- [Laser Class 1 Safety]: The Enclosure panels made with brown acrylic are specially designed to shield you from the laser hazards. The embedded door-detection sensor lets Ray automatically stop the laser job when the door is opened. (Please note:The laser engraver enclosure is not included,Please buy separately at our store)
