Snapmaker : E-Ray 20W Laser Engraver & Cutter

Brand: Snapmaker
Availability: Available

Rs. 169,067
    • 20W Laser Power: High-efficiency engraving and cutting.
    • Large Work Area: 400 x 400 mm for bigger projects.
    • Precision Engraving: Fine detail with accurate results.
    • Versatile Material Compatibility: Works with wood, acrylic, leather, and more.
    • Air Assist Support: Improves cutting quality and reduces smoke.
    • Adjustable Focus: Customizes for different material thicknesses.

Detail

Laser Module Output Power : 20W
Laser Electric Power : 65W
Machine Power (Enclosure excl.) : 140W
Maximum Thickness of One-pass : 10mm Basswood Plywood
Maximum Work Speed : 500mm/s
Maximum Cutting Speed : 10mm/s
Laser Spot Dimensions : 0.08mm x 0.1mm
Laser Type : 450 - 460nm Semi-conductor
Weight (Enclosure excl.) : 14.6kg
Dimension (Enclosure excl.) : 849 x 600 x 278 mm
Dimension (Enclosure) : 933 x 665 x 417 mm
Maximum Workpiece Height : 160mm (with two sets of cylindrical feet)

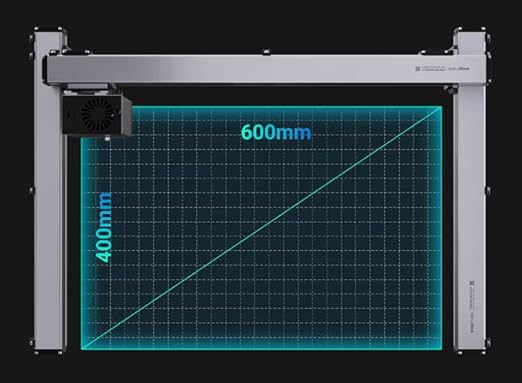

Work Area : 400 x 600 mm
Enclosure : Yes
Model : E-Ray 20W

  1.   [Strong cutting capabilities]: For Snapmaker 20W laser engraver,it delivers superb performance with the most cutting-edge laser beam splitter and beam shaping optics. It can cut 20mm Pinewood or 15mm Basswood Plywood in one pass.
  2.   [Smart Air Assist]: Snapmaker Ray laser engraving machine is equipped with Air Assist Pump. Air Assist can blow the fumes away and prevent charring as well as keep the laser lens clean. Snapmaker software Luban can let you enable Air Assist only on cutting layers, saving you the bother of manually turning it on or off for different layers.
  3.   [Industrial-grade Linear Rails]: Snapmaker adopted industrial-grade linear rails in Artisan 3-in-1 3D Printer to ensure minimal wobble even in fast CNC machining. The very same industrial-grade linear rails are used in XY-axis of Ray laser cutter to support high speed movement up to 500mm/s and long-lasting operation.

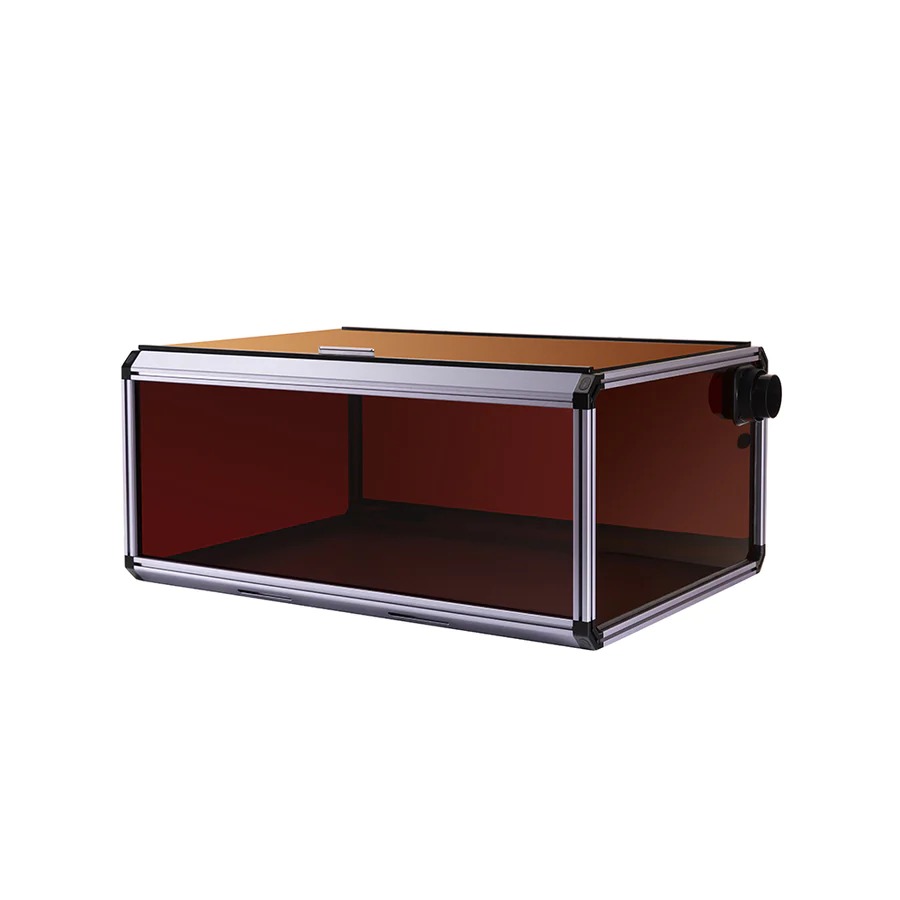

  4.   [Laser Class 1 Safety]: The Enclosure panels made with brown acrylic are specially designed to shield you from the laser hazards. The embedded door-detection sensor lets Ray automatically stop the laser job when the door is opened. (Please note:The laser engraver enclosure is not included,Please buy separately at our store)
